Merida One-Twenty 400

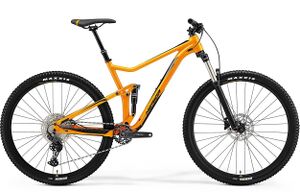

2022 Merida One-Twenty 400

2022 Merida One-Twenty 400

Build

• Frame: Alloy (Large)
• Fork: Suntour XCR34 LOR; Air; 130 STR; Tapered; lockout; 51mm fork offset
• Shock: Suntour Unair TR LOR8; lockout
• Handlebars: MERIDA EXPERT CC; MAT aluminium; 740 WHB; 10 RHB
• Headset: FSA NO.47/50
• Stem: MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD
• Bottom Bracket: Shimano MT500-PA pressfit
• Saddle: MERIDA COMP SL; V-mount
• Seat Post: MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 100 SPT - M: 125 SPT - L/XL: 150 SPT
• Weight Limit: 135kg (includes bike)

Wheels

• Wheel Size: 29"
• Rims: MERIDA COMP CC; 20 IWR; MAT aluminium
• Hubs: Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
• Tyres: Maxxis Rekon, 29x2.4", wire
• Spokes: Black stainless

Groupset

• Crankset: Shimano Deore M5100; 32 ATC
• Chain: KMC X11
• Brakes: Tektro M275, 2 piston
• Front Rotor: Shimano RT10, 180 mm
• Rear Rotor: Shimano RT10, 180 mm
• Shifters: Shimano SLX
• Derailleur Rear: Shimano Deore M5100 Shadow+
• Cassette: 11 Speed
