Scott Spark 960

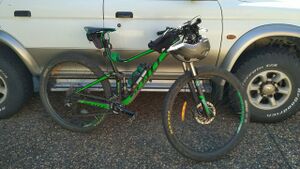

2017 Scott Spark 960

Overview

• 29'' XC mountain bike
• 120-mm suspension travel
• 2 x 10 speeds
• 14 kg

Original specifications

• Frame

  Spark 3 Alloy SL 6011, custom butted Hydroformed tubes, tapered Headtube / BB92, dropouts for 141x5mm

• Steering
  • Handlebar: Syncros T-Bar / Alloy 6061, T shape Flat / 9° / 740mm
  • Stem: Syncros 6061 Alloy, oversize 31.8mm / 1^1/8" / 6° angle
  • Headset: Syncros OE Press Fit / Tapered 1.5" - 1^1/8", OD 50/61mm / ID 44/55mm

• Suspension
  • Fork: Rock Shox Recon Silver RL Solo Air
    • 15x100mm Quick Release Thru axle / Tapered Steerer,
    • Travel: 120mm / Lockout
    • Rebound adjustment
  • Rear Shock: X-Fusion NUDE Trunnion
    • SCOTT custom with travel/geometry adjustment
    • 3 modes: Descend / Traction Control / Lockout
    • Travel: 120mm / 85mm / Lockout - 165X45mm
    • Rebound adjustment
  • Remote System: SCOTT TwinLoc Remote Technology, 3 modes

• Gears
  • Bottom Bracket-Set: Shimano BB-MT500-PA / shell 41x89.5mm
  • Shifters: Shimano Deore SL-M610 / Rapidfire Plus, 2-way release with indicator
  • Derailleurs
    • Front: Shimano Deore FD-M617-D / side swing
    • Rear:  Shimano SLX RD-M7000-10 SGS, Shadow Type / 20 Speed
  • Crankset: Shimano FC-M627-B2 / 2-piece Design, 36x22 T
  • Cassette: Shimano CS-HG50-10 / 11-36 T
  • Chain: KMC X10

• Pedals

  Wellgo M-21

• Brakes

  Shimano M365 Disc, 180mm F & R / SM-RT30 CL Rotor

• Seat
  • Seatpost: Syncros / 31.6x400mm
  • Seat: Syncros XR2.5

• Wheels
  • Size: 29''
  • Hubs
    • Front: Formula CL71 / 15x100mm
    • Rear:  Formula CT1702 / 141x5mm
  • Spokes: Stainless Black 15G / 1.8mm
  • Rims: Syncros X-23 / 32H / Tubeless ready
  • Tyres: Maxxis Forekaster / 2.35 / 60TPI

• Weight

  13.7kg
